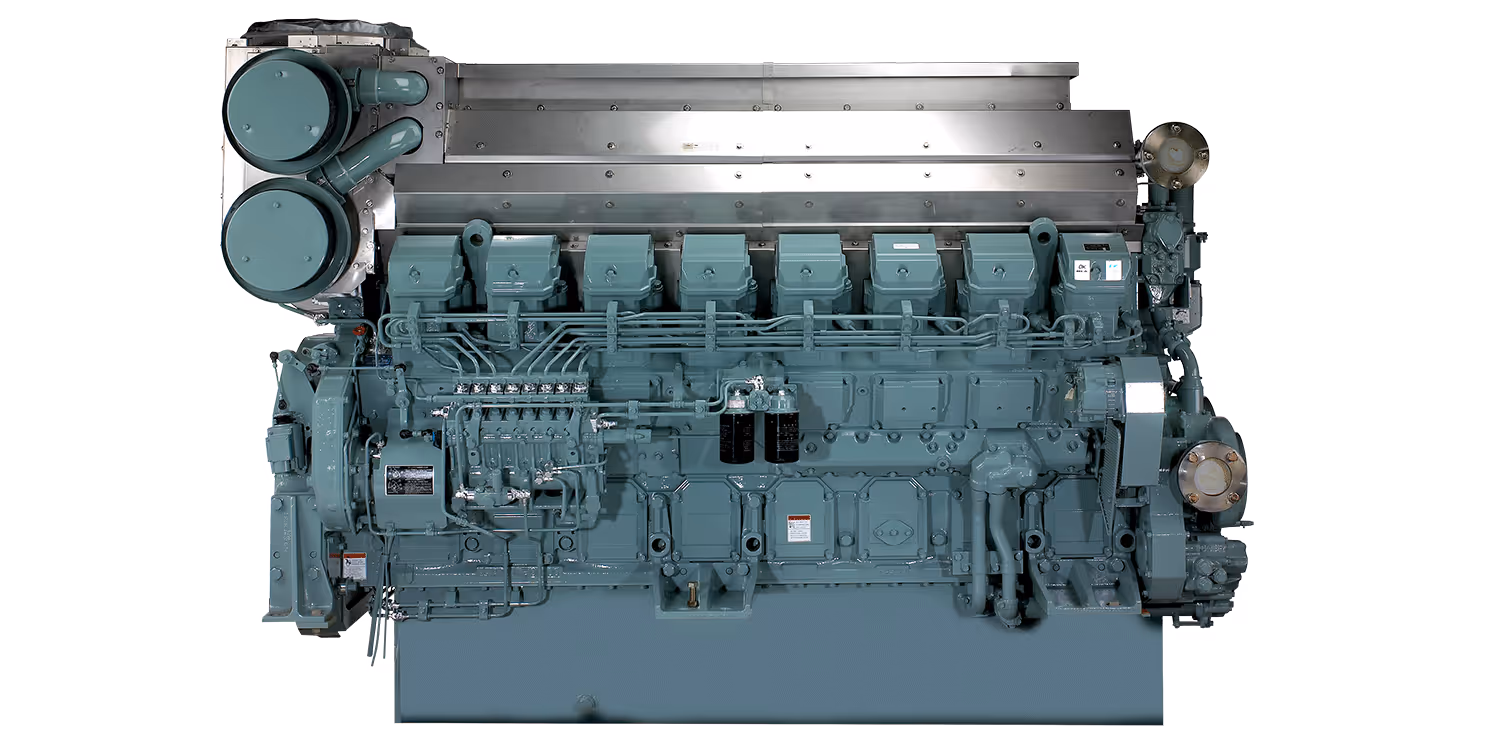

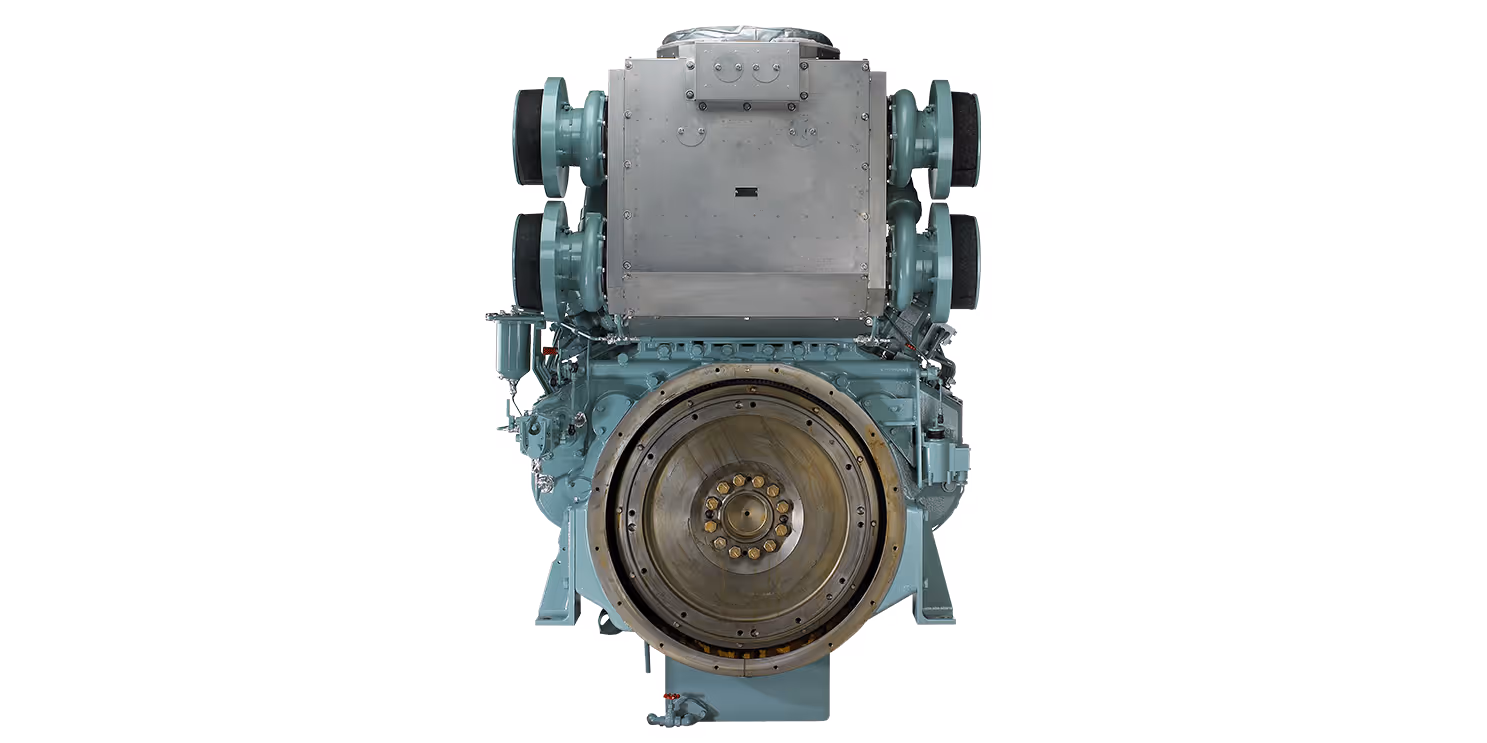

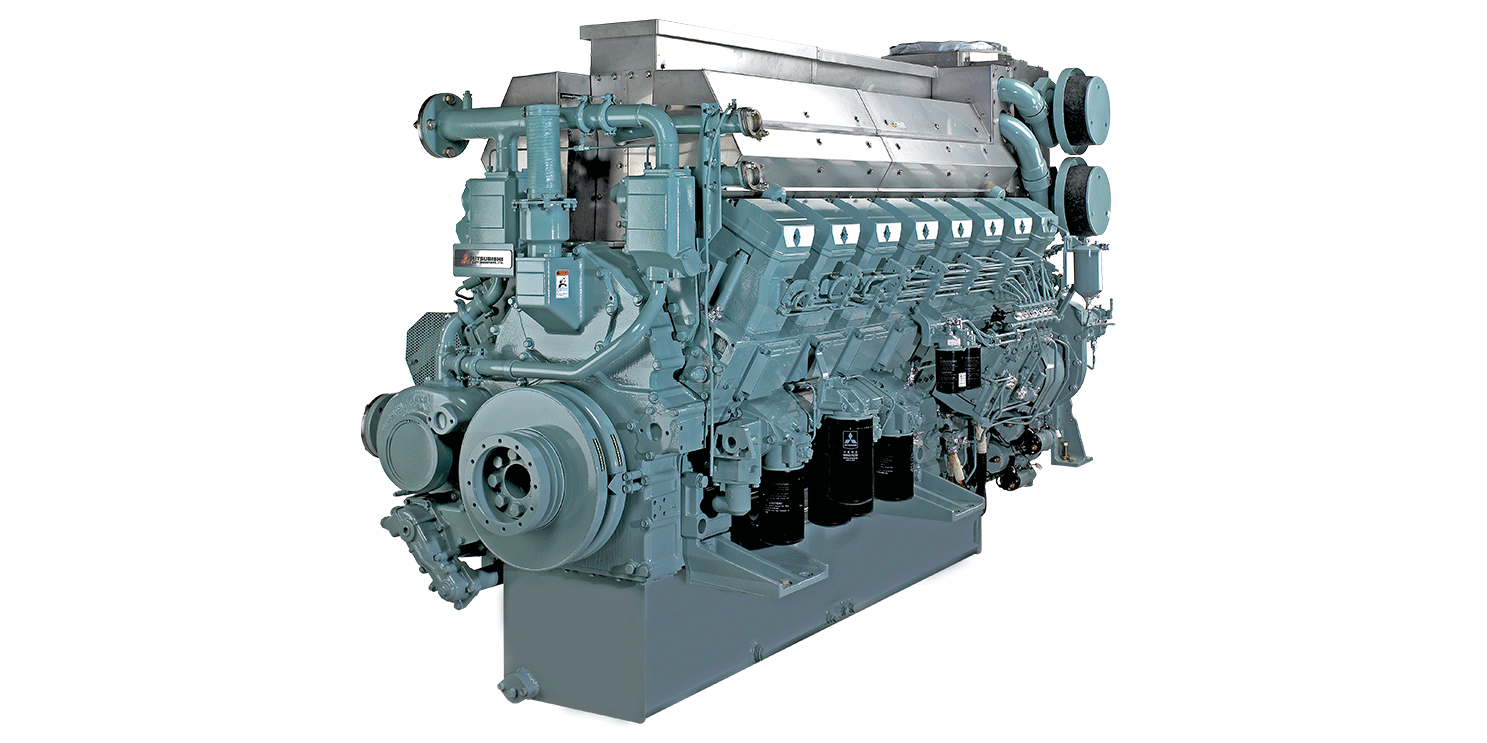

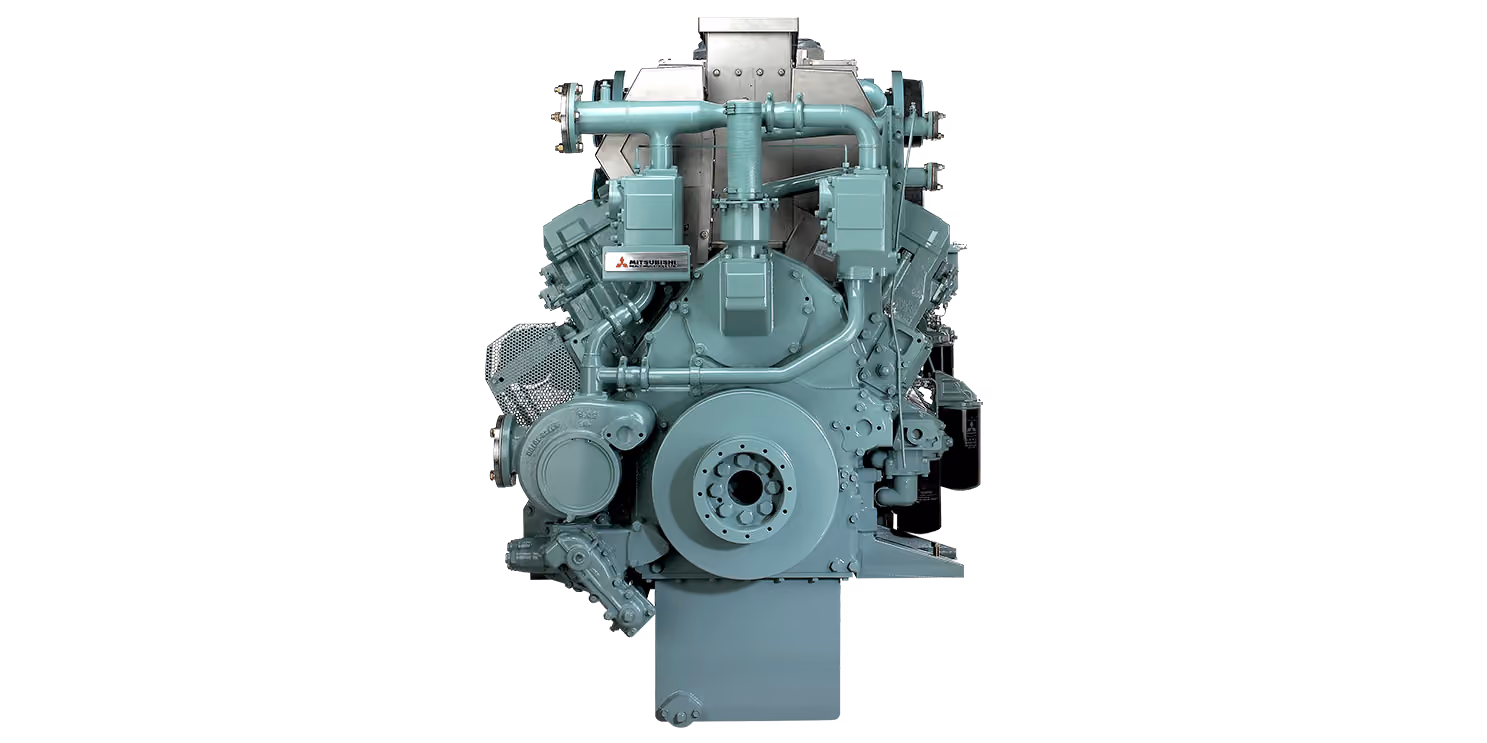

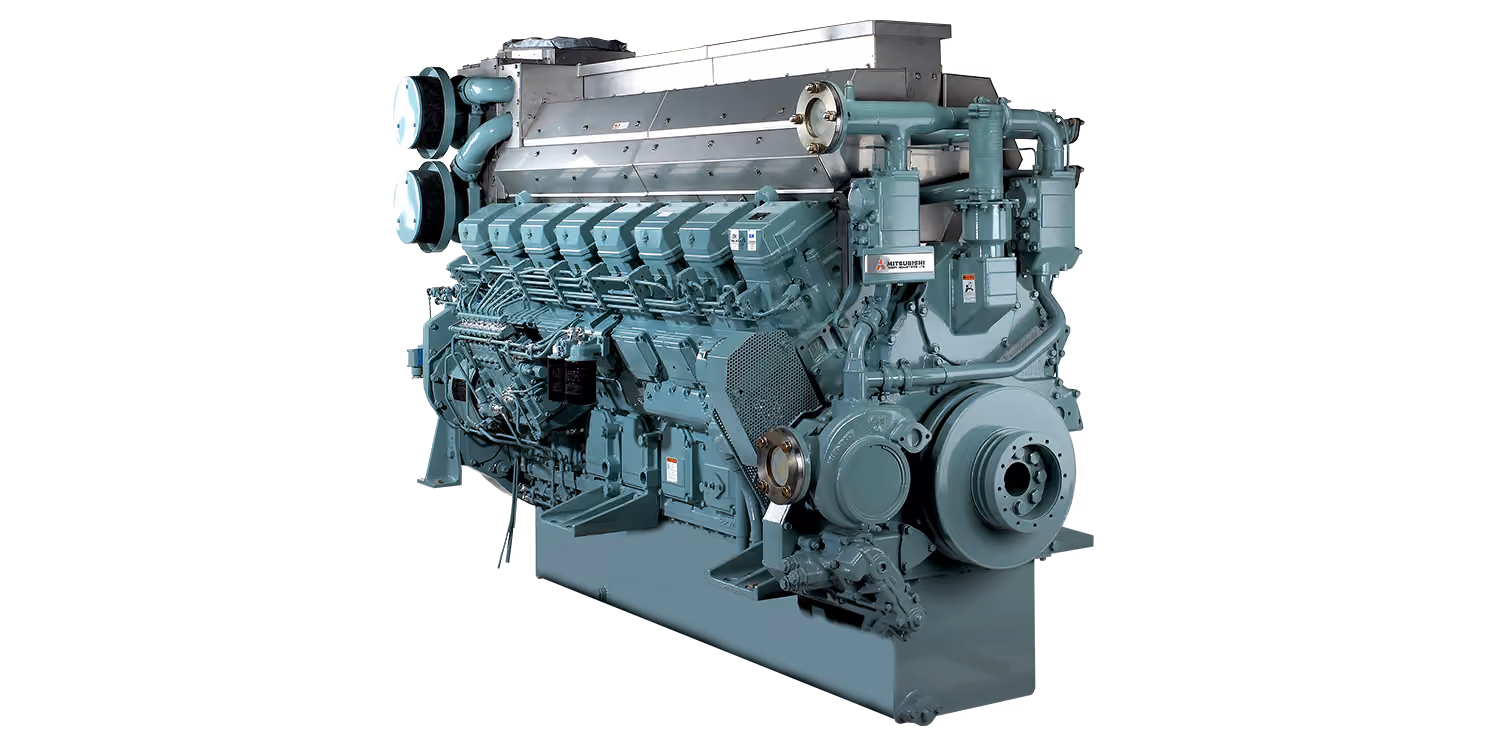

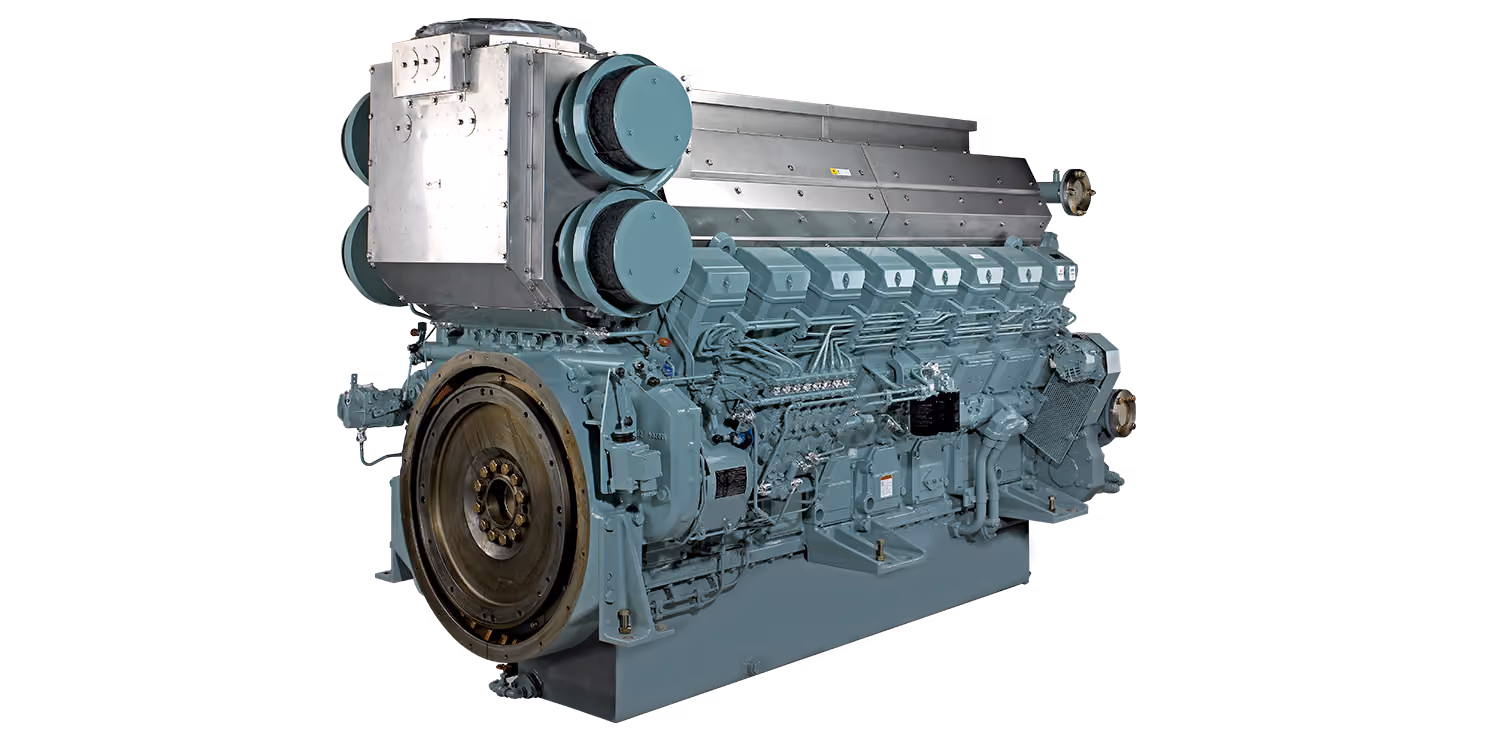

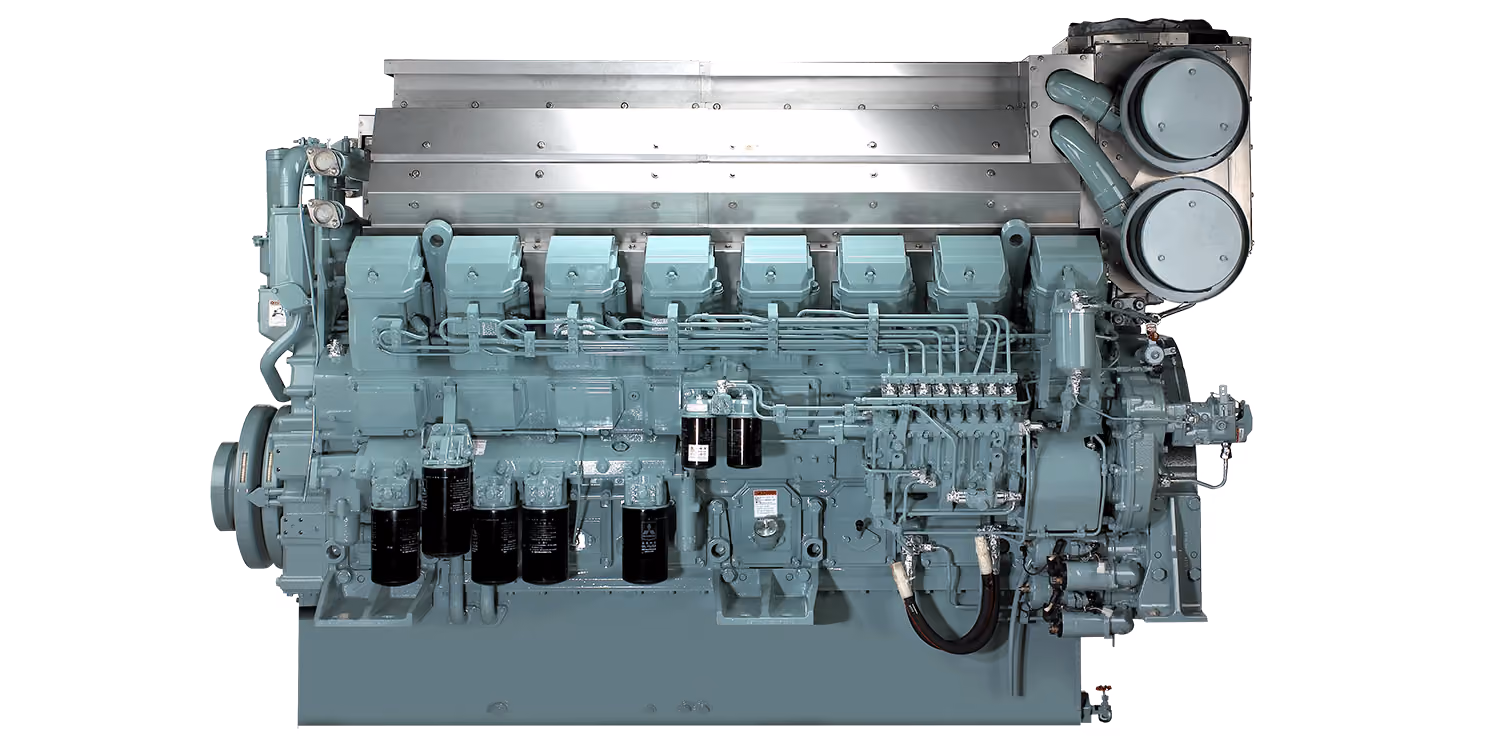

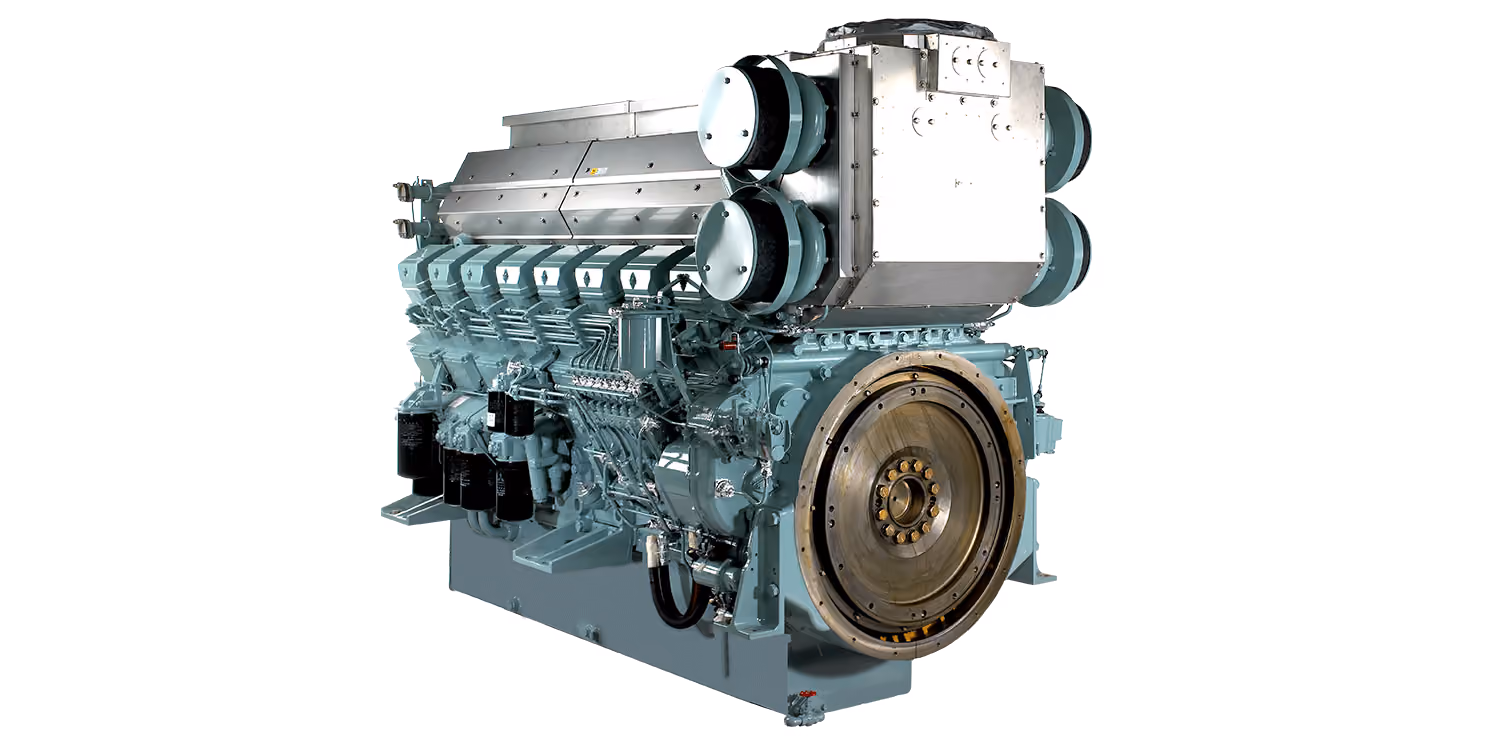

Mitsubishi Marine Engine S16R-MPTA
No items found.
General information
The S16R-MPTA engine is designed and built in Japan and finished to customer specifications in France in order to deliver performance and reliability. From the combustion chamber design to the fuel injection technology, to the turbocharger and the advanced cooling system. Everything has been perfectly balanced to provide highly reliable operation, optimum fuel consumption and minimized installation footprint. Its maintenance is easy as each cylinder has its own cylinder head, and the engine has large inspection covers on the crankcase. This strength and reliability are ideally suited for propulsion for various types of vessels.
Benefits
- Reliable
- Compact in size
- Economical fuel consumption
- Commonality of parts across the MHIET engine models, simplifies spare part management
Applications
- Fishing
- Tugboats
Specifications
Cylinder configuration
16/60°V
Total displacement (l)
65.37
Bore x stroke (mm)
170 x 180
Flywheel and housing
SAE 21 / SAE 00
Compression ratio
14.0:1
Dry weight (kg)
6660
Dimensions - L x W x H (mm)
2931 x 1512 x 1960
Method of operation
16-cylinder, 4-stroke, water-cooled diesel engine, with direct-injection, turbocharger and air-cooler
Cooling method
single cooling circuit; charge air cooler integrated in jacket water system (aftercooler)
