Marine Engine

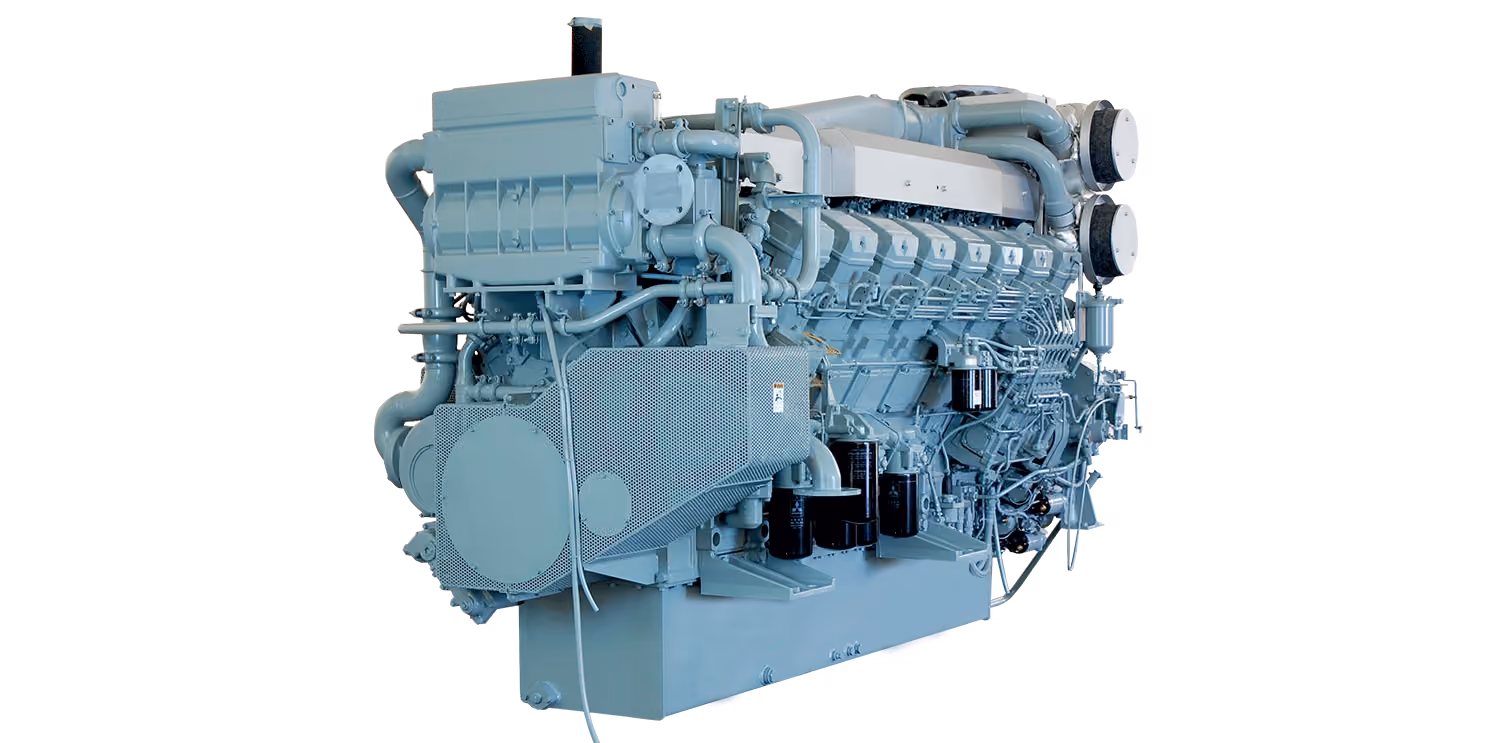

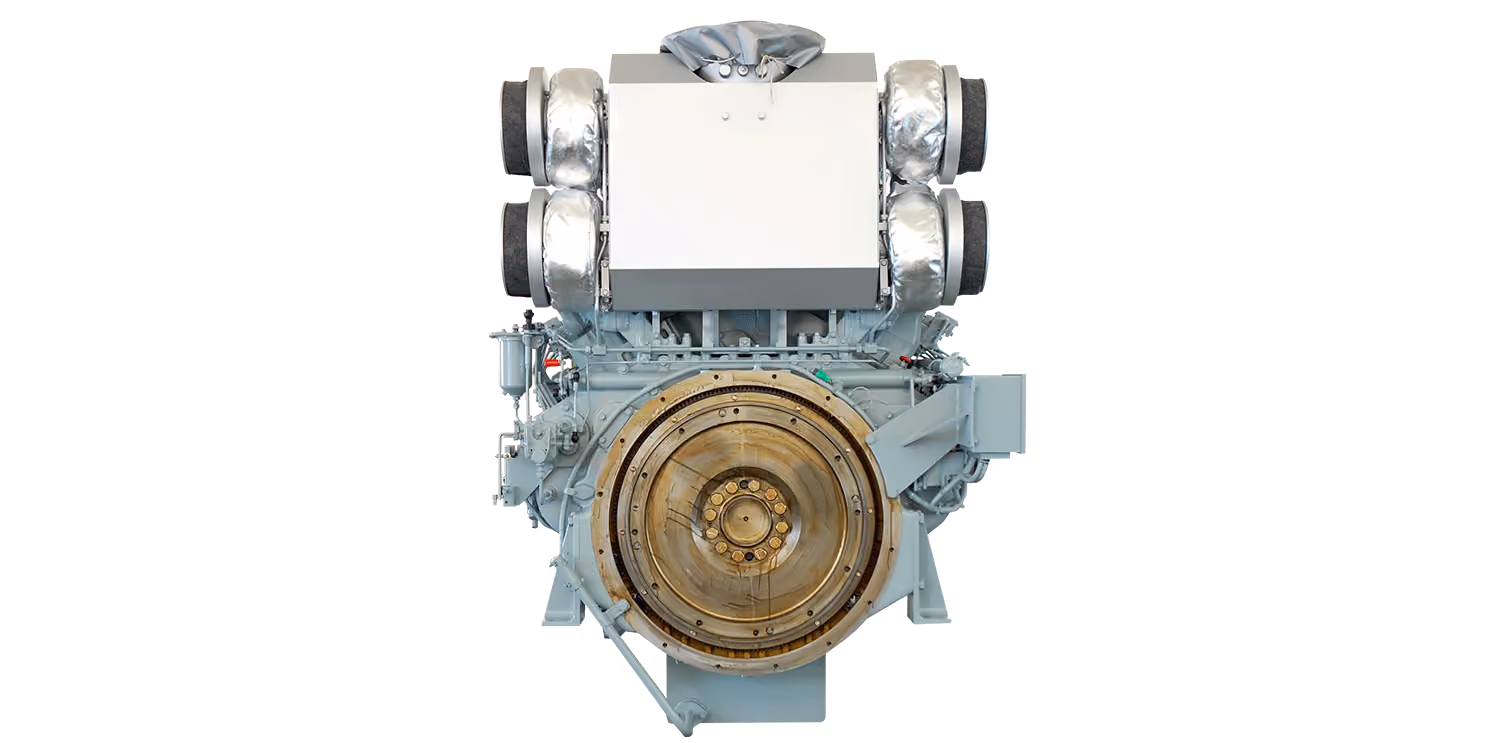

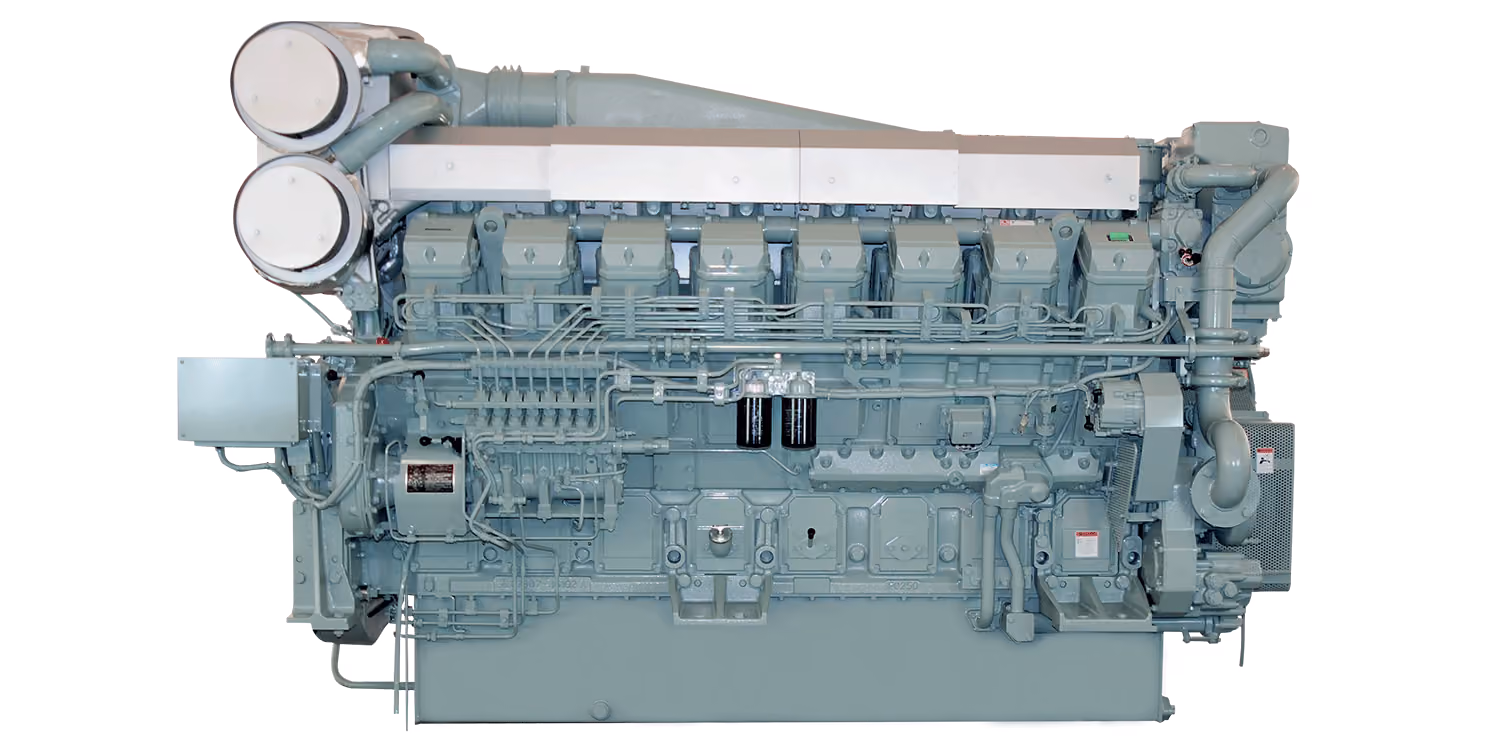

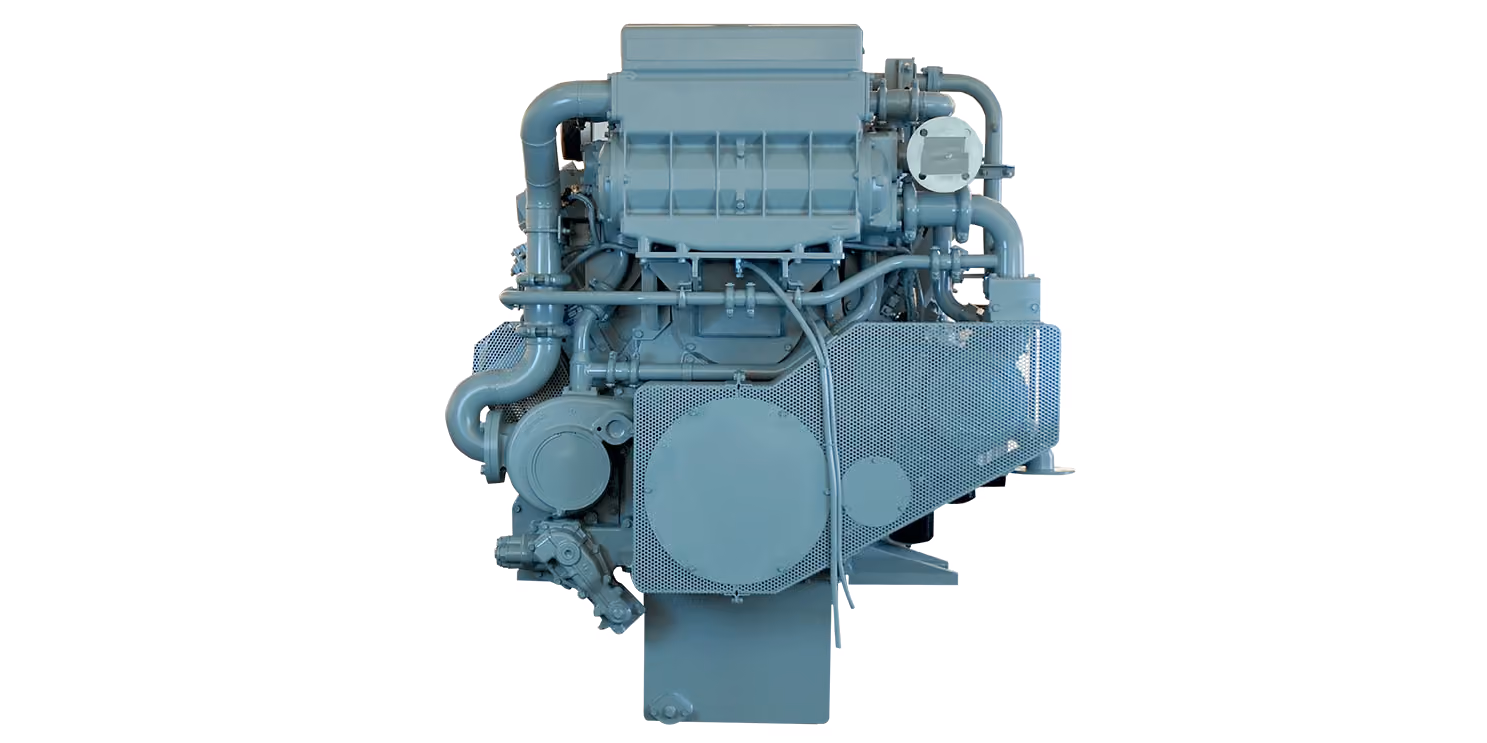

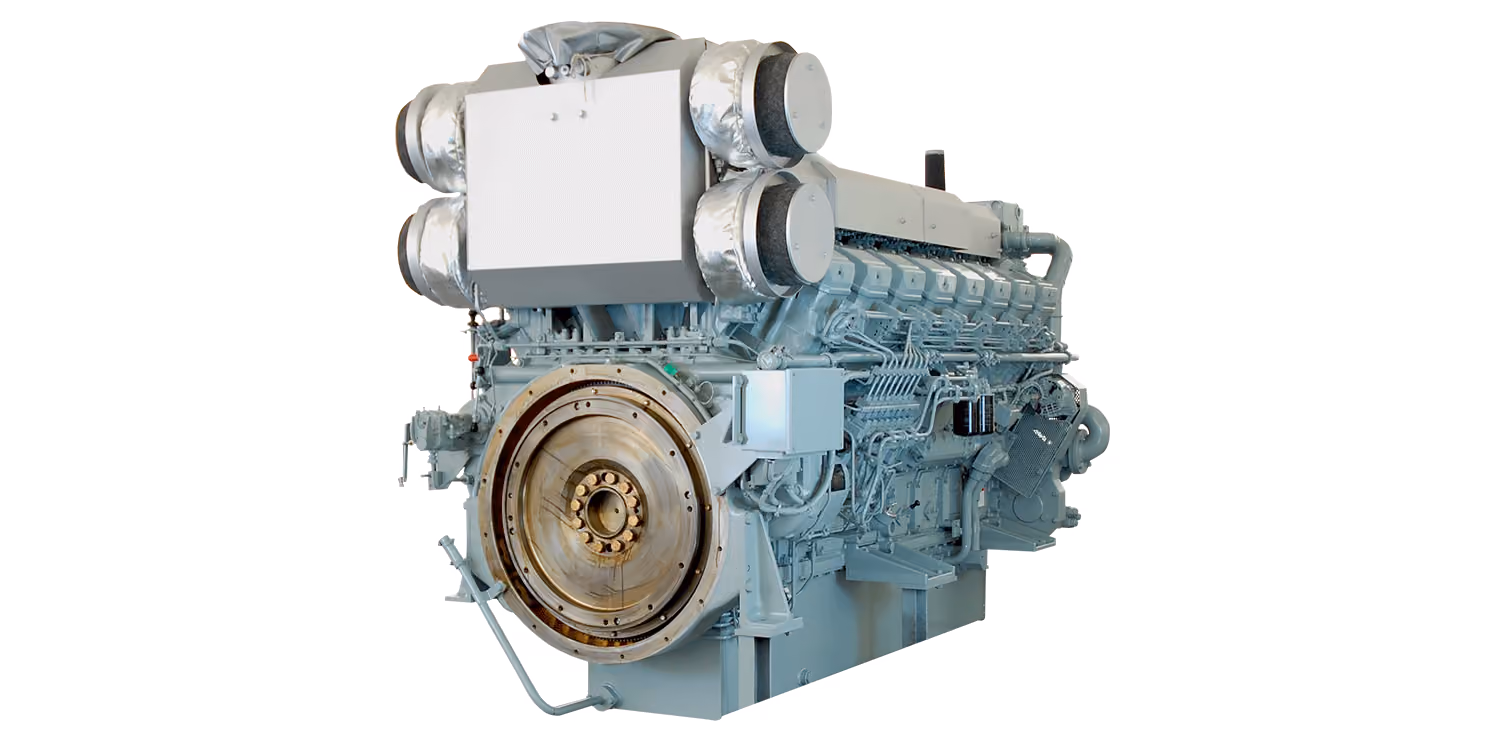

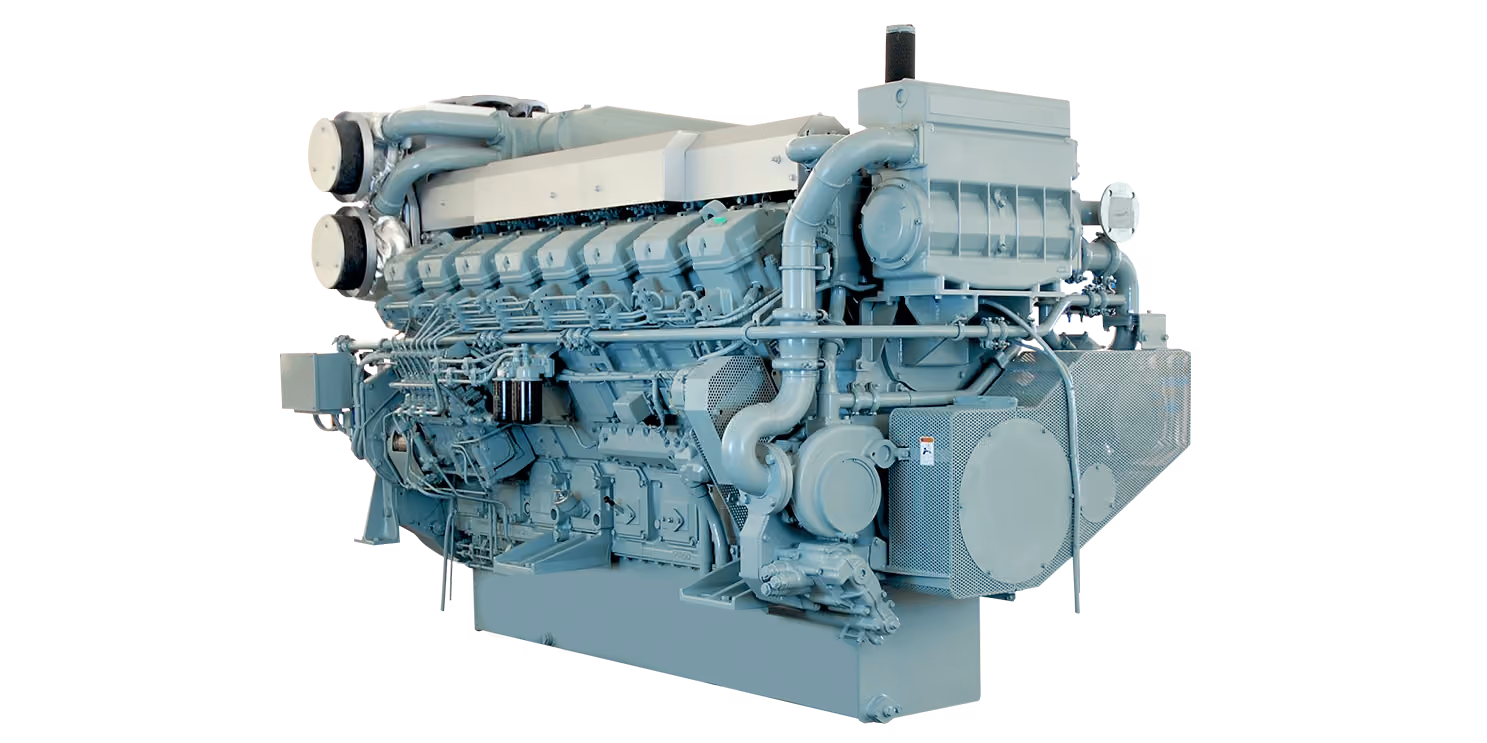

Mitsubishi Marine Engine S16R-T2MPTK

No items found.

General information

The S16R-T2MPTK engine is designed and built in Japan and finished to customer specifications in France in order to deliver performance and reliability. From the combustion chamber design to the fuel injection technology, to the turbocharger and the advanced cooling system. Everything has been perfectly balanced to provide highly reliable operation, optimum fuel consumption and minimized installation footprint. Its maintenance is easy as each cylinder has its own cylinder head, and the engine has large inspection covers on the crankcase. With our Mitsubishi Marine Engine propulsion package series, we offer a complete package, including a built-up heat exchanger, a seawater pump and panels for a compact design, ensuring easy installation and maintenance.

Benefits

  • Reliable
  • Compact in size
  • Economical fuel consumption
  • Commonality of parts across the MHIET engine models, simplifies spare part management

Applications

  • Fishing
  • Short sea
  • Tugboats

Specifications

Cylinder configuration
16/60°V
Total displacement (l)
65.4
Bore x stroke (mm)
170 x 180
Flywheel and housing
SAE 21 / SAE 00
Compression ratio
14.5:1
Dry weight (kg)
7000

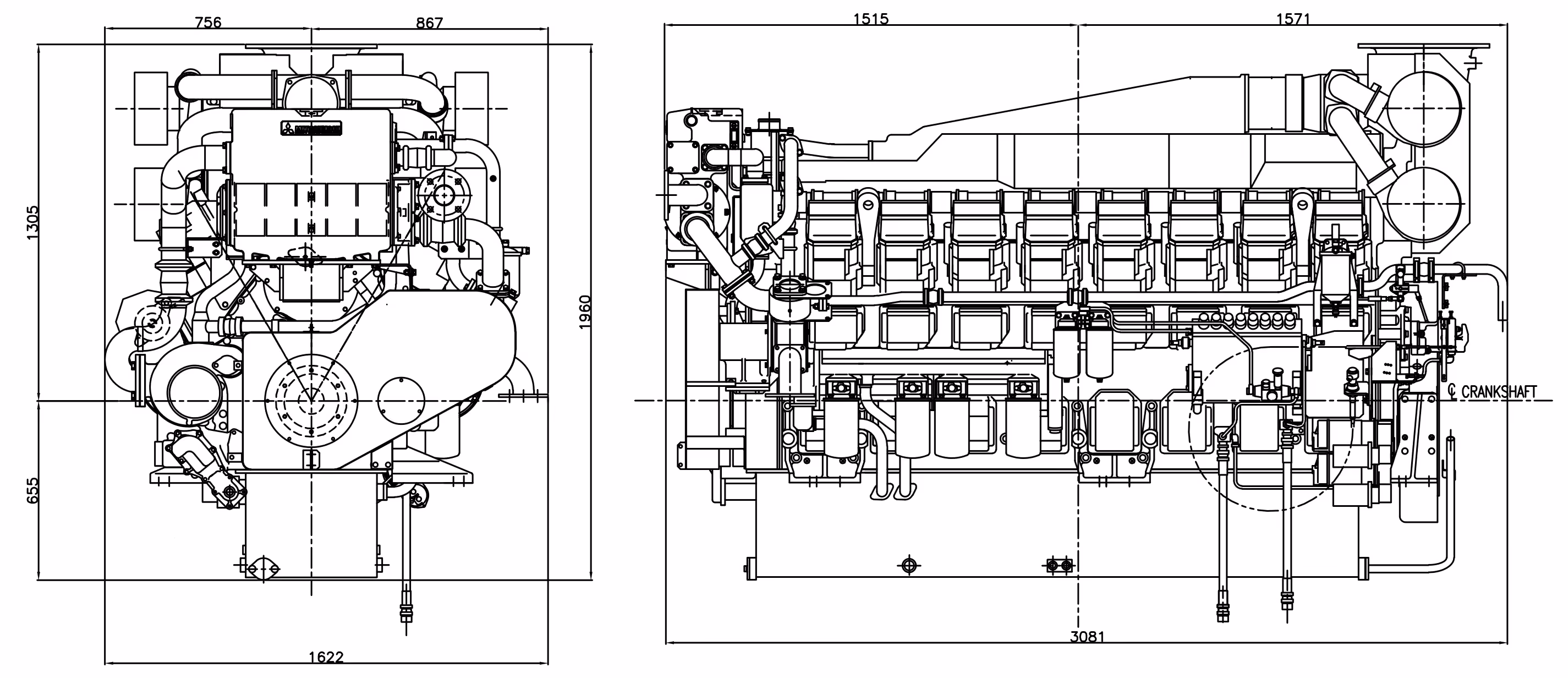

Dimensions - L x W x H (mm)
3086 x 1622 x 1960
Method of operation
16-cylinder, 4-stroke, water-cooled diesel engine, with direct-injection, turbocharger, air-cooler, built-up heat exchanger and sea water pump
Cooling method
separate high and low temperature cooling circuit; charge air cooler directly cooled by sea water (intercooler)
