S6U2-PTA

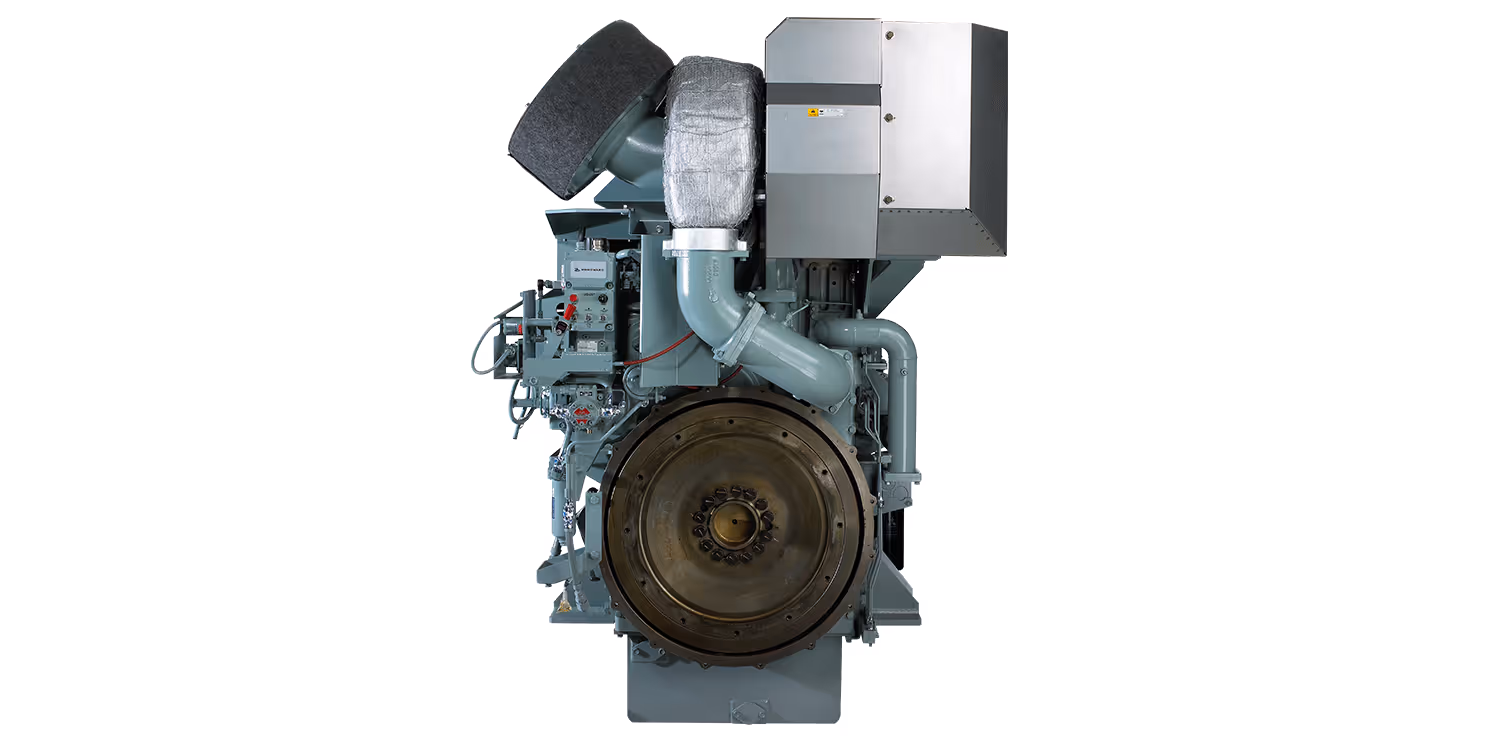

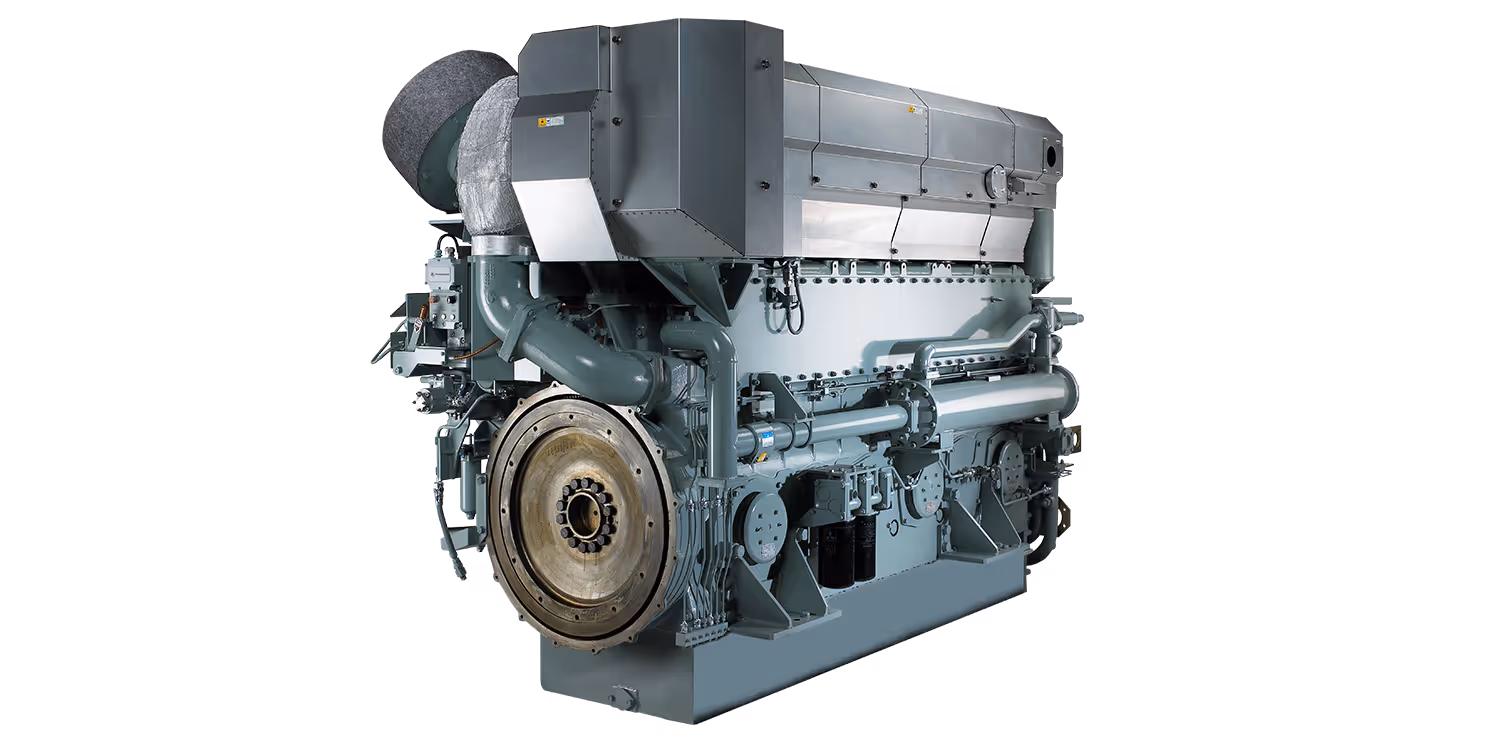

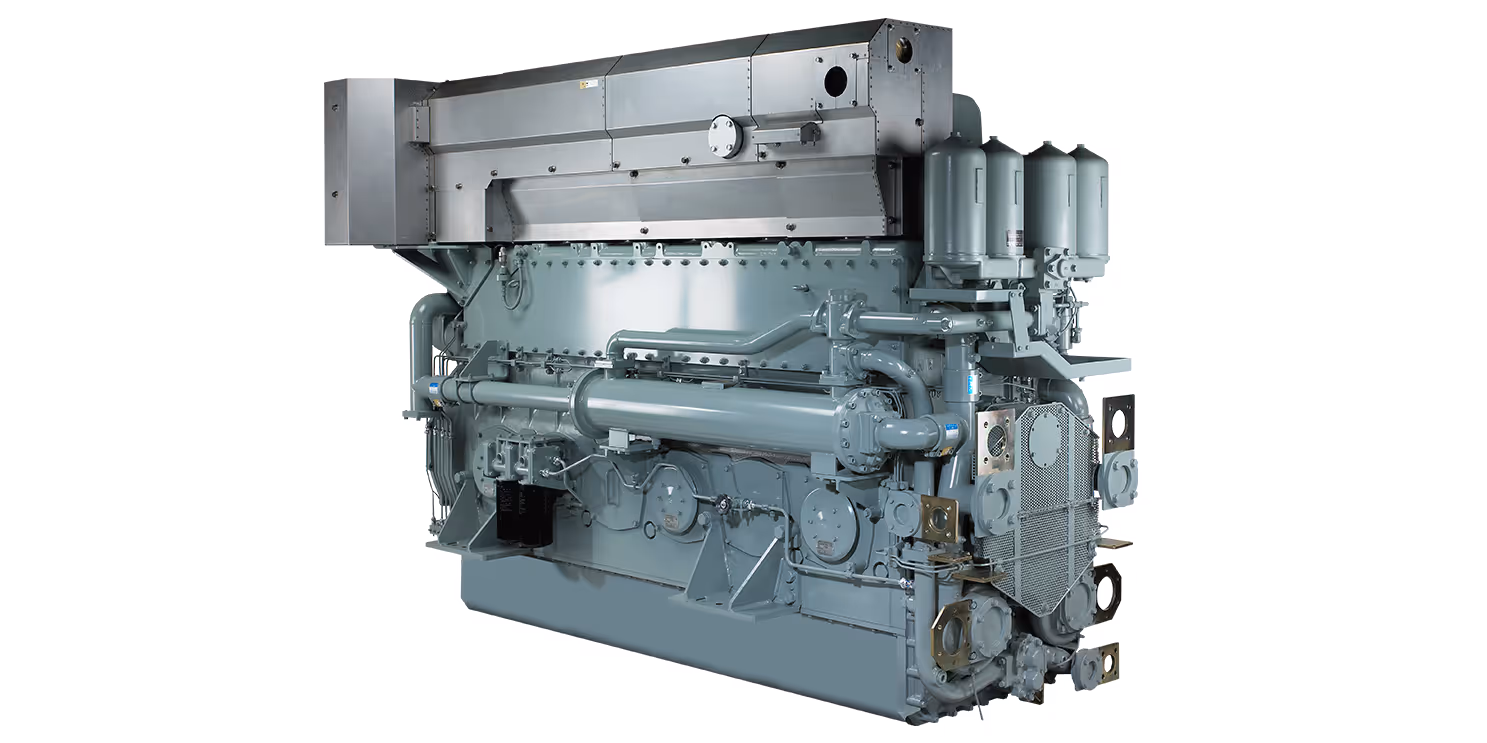

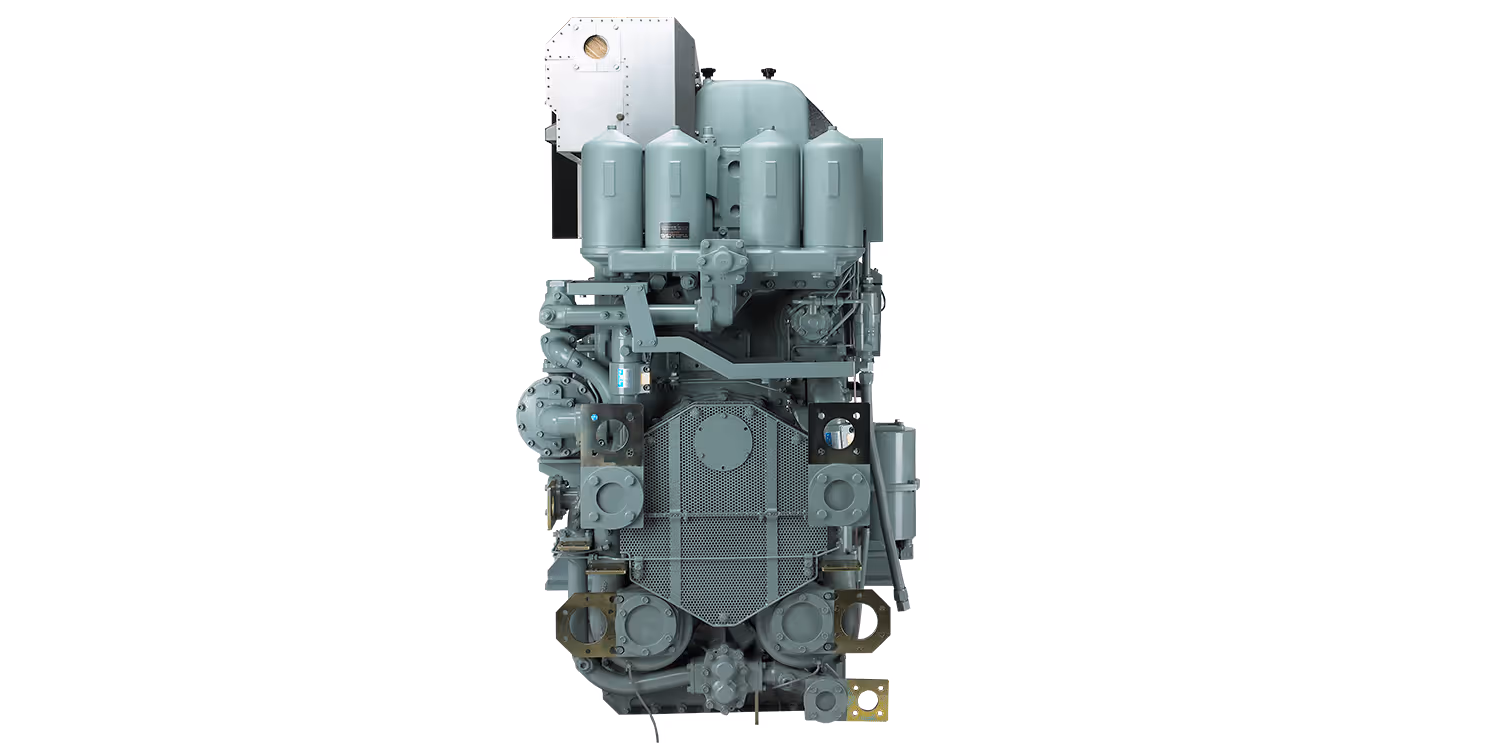

Mitsubishi Engine - Industrial - Constant Speed S6U2-PTA
No items found.
General information
The medium speed SU-series inherits all the very best of Mitsubishi's proprietary technologies, which have been in use and continuously improved for over half a century. Mitsubishi's reliable design generates a powerful yet compact engine that is easy to mount and maintain. The S6U2-PTA boasts a robust, rigid structure, low fuel cost and low noise levels - key requirements for power production applications. The engine is built to deliver dependable service for many years and to satisfy the exacting demands of large-scale power generation.
Benefits
- Compact in size
- Economical fuel consumption
- Configurable for operation using HFO (please contact us for details)
- MHI-ET -designed and -manufactured fuel system and turbocharger
- Engine design and components layout allows for easy inspection and maintenance
- Maintenance activities require a low number of specialised tools
- Commonality of parts across the MHIET engine models, simplifies spare part management
Specifications
Engine type
4-stroke,diesel
Cylinder configuration
6 in-line
Bore x stroke (mm)
240 x 300
Total displacement (l)
81.430
Dry weight (kg)
8650
Dimensions - L x W x H (mm)
3402 x 1402 x 2206
Aspiration
Turbocharged
Cooling system
water-cooled with separate jacket water and charge-air cooling circuits
Combustion system
direct injection
Fuel injection system
pump-line-nozzle (individual pump per cylinder)
Electrical system (V)
24
Rotation (ISO 1204)
counter clockwise
Flywheel and housing
21â / 00
